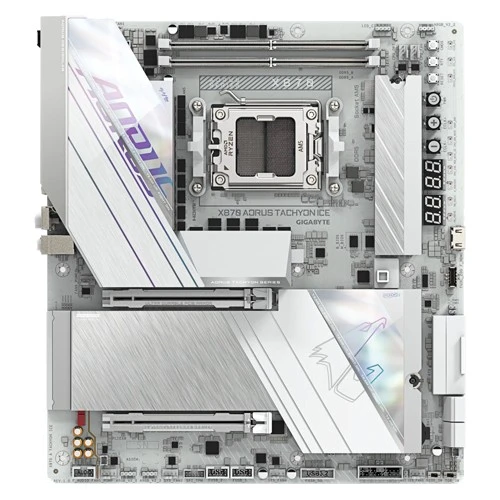

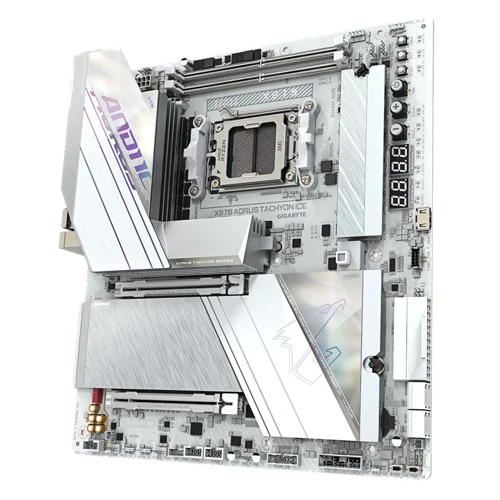

AMD Ryzen 8000 Series Processors

AMD Ryzen 7000 Series Processors

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory

Dual channel memory architecture

Support for ECC and non-ECC Un-buffered DIMM memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and ExtremeMemory Profile (XMP) memory modules

– 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160 240Hz

Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon Graphics support:

– 1 x HDMI port, supporting a maximum resolution of 4096×2160 60Hz

Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for native HDMI 2.1 TMDS compatible ports.

– 1 x front HDMI port, supporting a maximum resolution of 1920×1080 30Hz

Support for HDMI 1.4 version.

– AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode

– AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

– AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:

– AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode

– AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

– AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

– AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 5 is only available on AMD Ryzen 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

– Support for 11be 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

The back panel line out jack supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel

You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

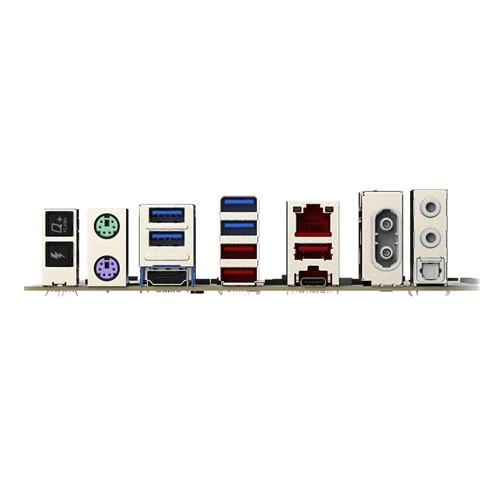

CPU:

– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

– 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

– 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header

– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

– 2 x USB 3.2 Gen 1 ports available through the internal USB header

– 4 x USB 2.0/1.1 ports available through the internal USB headers

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

2 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 2×2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x noise detection header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x HDMI port (Note)

1 x reset jumper

1 x Clear CMOS jumper

2 x temperature sensor headers

1 x power button (PWR)

1 x reset button(RESET)

1 x Clear CMOS button (CMOS)

1 x Cold Reset button (RTY)

1 x CPU Clock up button (ECLK+)

1 x CPU Clock down button (ECLK-)

1 x BIOS switch (BIOS_SW)

1 x OC Trigger switch (TGR_SW)

Voltage Measurement Points

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Use of licensed AMI UEFI BIOS

Support for DualBIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
